INSTALL AND USE THE EQUIJACK IN 6 SIMPLE STEPS
The EquiJack is ideal for lifting haynets between 3kg and 30kg to drain after soaking as well as being useful to hang the net in your horse’s stable.
How to use videos can be found at the bottom of this page.
IMPORTANT SAFETY INFORMATION: The EquiJack must be used in accordance with the instructions provided below.
Incorrect installation or use may result in injury to the user or animal. Keep out of reach of animals and children at all times.
Please also read our safety guidance carefully before using your EquiJack.

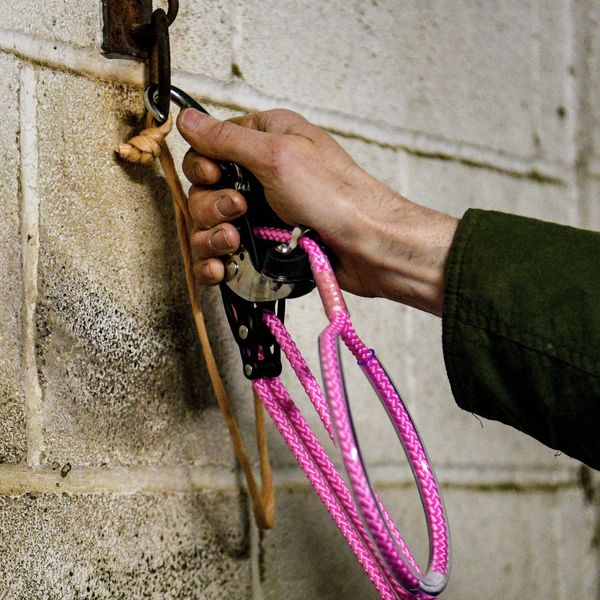

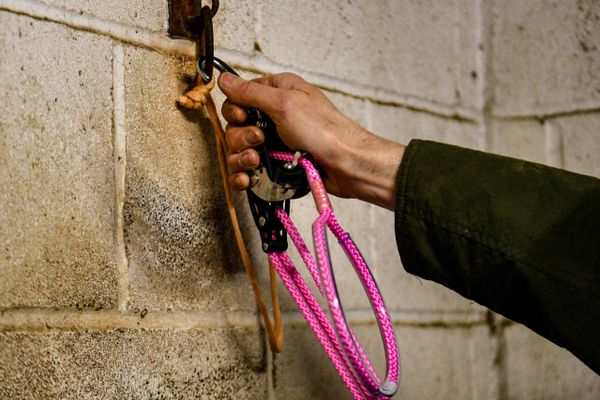

1. CLIP THE EQUIJACK TO A METAL RING
Before each use always check your EquiJack for serviceability; checking all parts are in good working order before using.
The EquiJack must only be secured to a fixed, stable structure capable of safely supporting the maximum load (30 kg). The user is responsible for ensuring the anchor point is appropriate before use.
For best results ensure the EquiJack is clipped 20-25cm above where you usually tie your haynet, in this photo the haynet will be tied to the twine which sits 25cm below where the EquiJack has been clipped, or for extra precision use our Twin Ring.

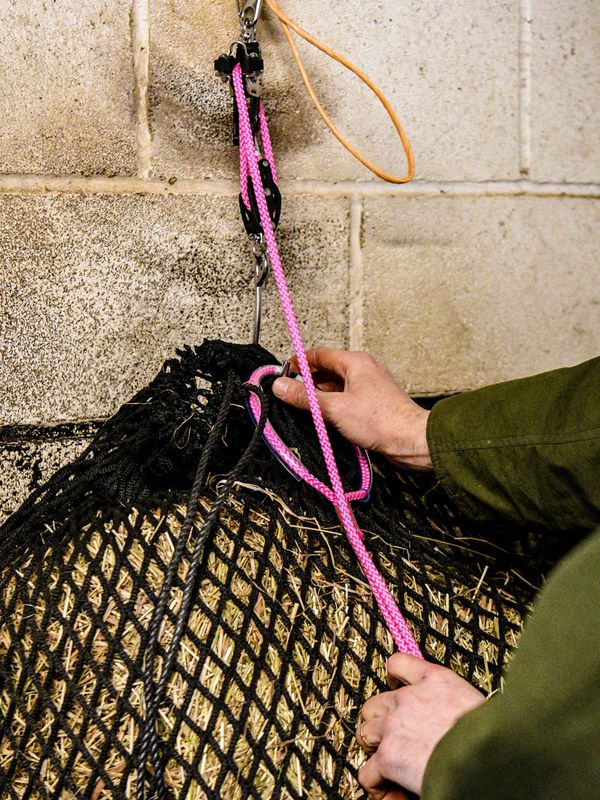

2. HOOK THE HAYNET
The haynet should be hooked about 15-20cm below the mouth of the net. Every haynet is different so you may need to place your hook further down the net if you find your net does not lift high enough. The lower down the net you place the hook the higher the mouth of the net will rise.
Ensure the hook passes through both sides of the net, with the net seated securely at the base of the hook rather than on the tip, to prevent damage to the hook.

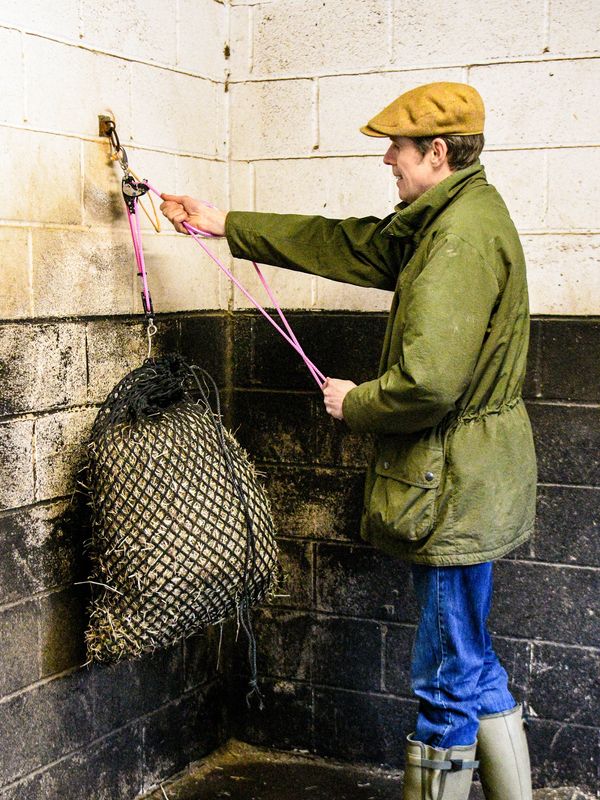

3. PULL THE HANDLE AND WATCH YOUR HAYNET RISE
Pull the handle until the haynet hook reaches the top pulley. When pulling make sure you pull down rather than out so that the rope fixes between the cleat. Before letting go of the rope make sure the rope is fixed in the cleat so that the net does not fall to the ground.

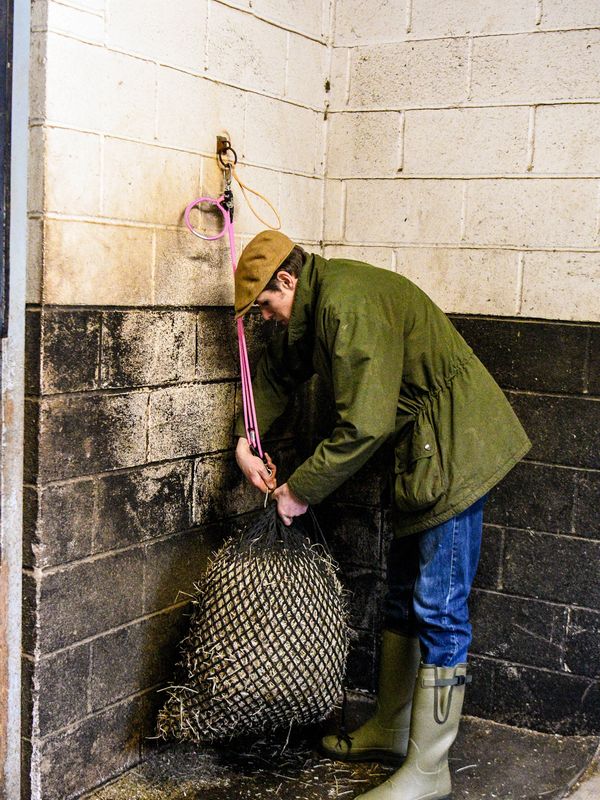

4. STORING THE ROPE AS YOU LIFT THE NET
When pulling the rope to lift the net you will end up with a long length of rope, it is imperative that this does not end up on the floor as this becomes a trip hazard. We suggest holding the excess rope. When tying the net we suggest either hooking the handle out of the way or holding onto it whilst you tie your net.

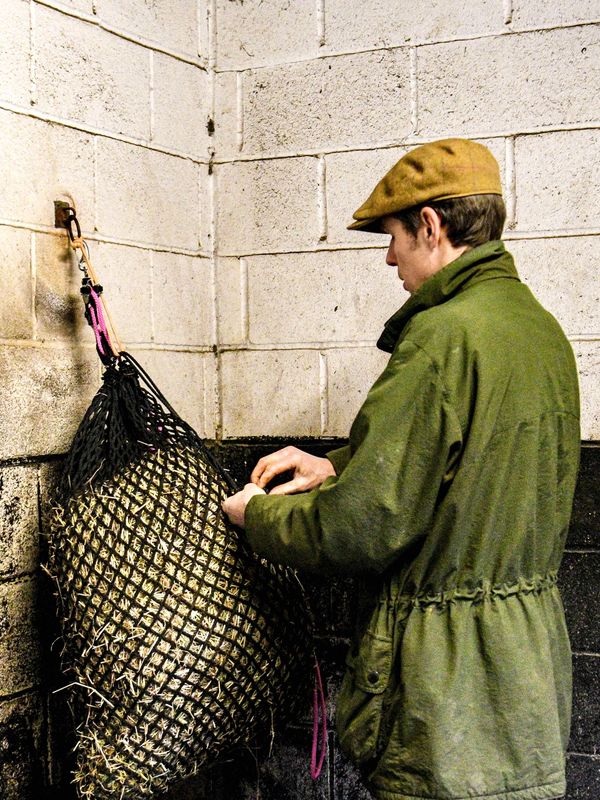

5. TIE YOUR HAYNET AS NORMAL
The EquiJack will hold the net in place enabling you to easily tie your haynet. If you are using a Twin Ring remember it does not have a breakaway feature - please tie your haynet as per our Twin Ring instructions.
6. REMOVE THE EQUIJACK
To easily remove the EquiJack, pull the rope towards you and then up to release it from the cleat. Once the rope is free from the cleat hold the hook and pull down releasing it from the haynet.
Unclip the EquiJack from the ring and remove from the stable.
*Never leave your EquiJack in the stable with your horse or pony.*
7. STORING THE EQUIJACK
Always store the EquiJack out of reach of children and animals. When putting the EquiJack away, make certain that it’s placed securely to prevent it being a trip hazard.
